Patented One Step Integrated Cell Connection

Fig.1: SEM cross section of a P1i patterning structure showing the CIGS cell stack applying a 3-layer backelectrode and the P1-laser groove filled with insulating ink
The significant advantage of the one step integrated cell connection is displayed in the reduction of the front end processing from typically 11 processing steps to finally 5, see the schema Fig.2 below.
The major benefits of this technology are:
-
significant cost reduction by saving processing steps
-

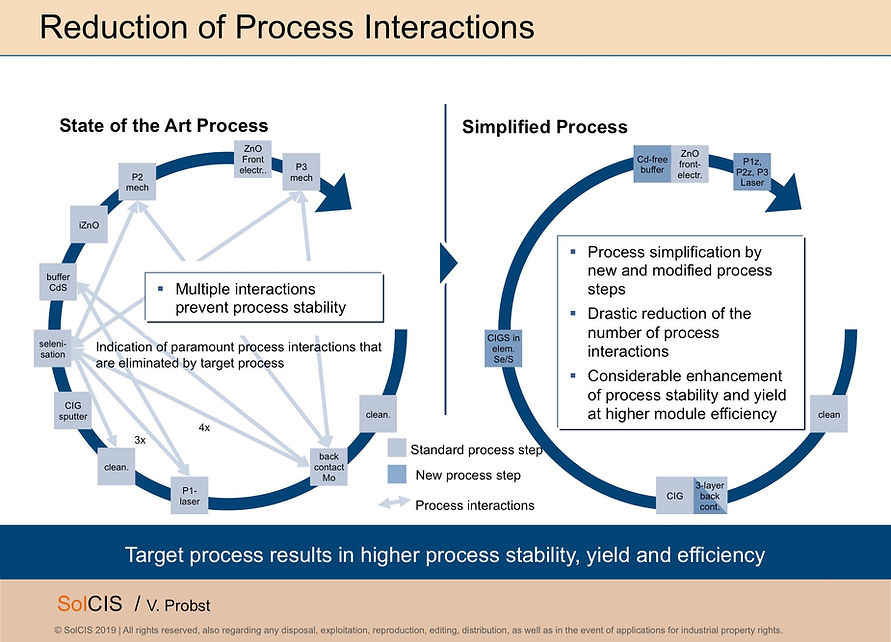

better front end process control through simplified process sequence, see Fig. 4 below
-
custom designed cell layout production in campains enabled just by loading different recipes in one processing step
-
increase of active module area (efficiency) by reducing the spacing between the patterning lines. This is enabled by:
-
eliminating mounting & demounting of the modules in between the different steps of integrated series connection (dependance of line spacing on adjustment accuracy is eliminated)
-
self-adjustment of the patterning lines to each other in one processing system
-
-
better low light behavior of the solar modules due to a nearly ideal cell insulation (parasitic shunts between the cells - which always occur by conventional integrated series connection through the conductive CIGS-layer - are eliminated)
-
CIGS doping by e.g. sodium is not restricted any more by parasitic shunt effects on patterning P1 => higher module efficiency through accurate doping adjustment
